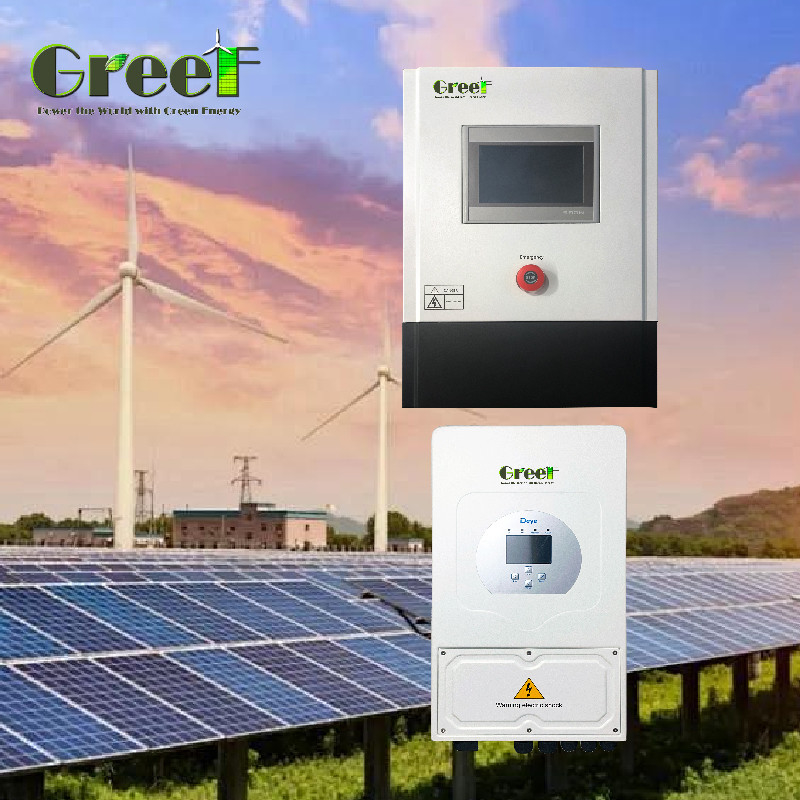

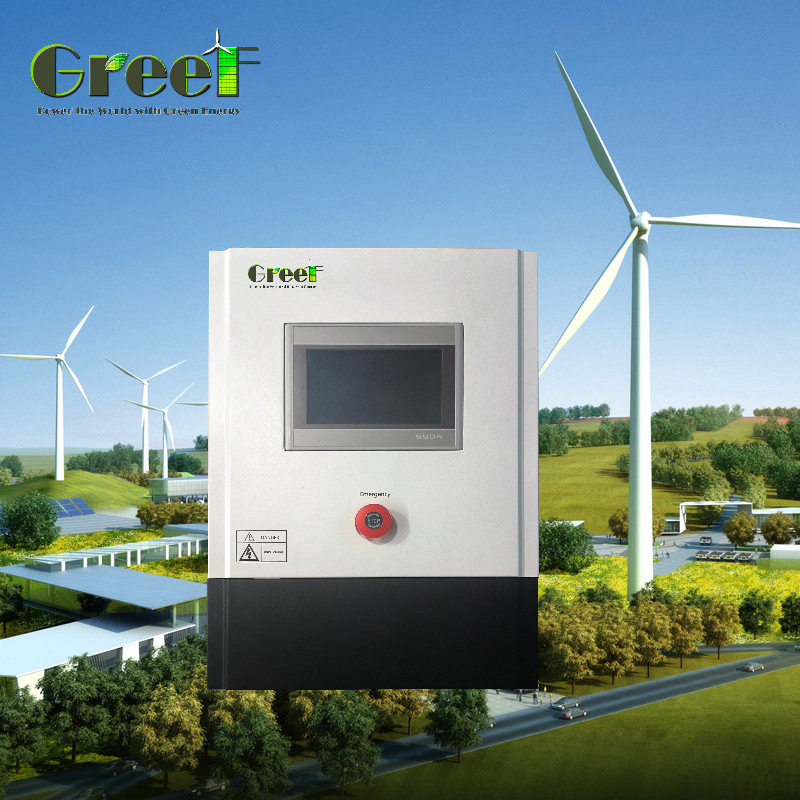

Op-grid-controller met MPPT 3kw 5kw 10kw CE-certificering
Inleiding van het product
De netgebonden regelaar is technologisch gezien het belangrijkste onderdeel van windgeneratoren op het net.die drie wisselstroom van windturbine omzetten in gelijkstroom en dan naar de net-link inverter sturen.. de GT-PCTC-serie windprofessionele netgebonden regelaar met dubbele veiligheidscontrolesystemen: PWM-constante spanningssysteem en driefasig dumpbelastingsremsysteem,Deze innovatieve oplossing maakt ook verbindingen met zonne-inverters van merken als Growatt, Deye, Solis en Ivet, waardoor zonne-omvormers zich kunnen aanpassen aan de werking van windturbines.
Vandaag (kWh), stroom opwekken deze maand, stroom opwekken vorige maand, stroom opwekken dit jaar, stroom opwekken vorig jaar, stroomcurve
instellen.
PWM-constante spanning
≥ 700dc
≥ 700dc
≥ 700dc
≥ 700dc
≥ 700dc
Spanning van de 3-fasige dumpbelasting van windturbines
750±5Vdc
750±5Vdc
750±5Vdc
750±5Vdc
750±5Vdc
Tijdsverloop van de 3-fase dumpbelasting van windturbines
12 tot 20 minuten.
12 tot 20 minuten.
12 tot 20 minuten.
12 tot 20 minuten.
12 tot 20 minuten.
Omgevingstemperatuur
-30-60°C
Relatieve luchtvochtigheid
< 90% Geen condensatie
Ruis (1m)
< 40 dB
Grade van bescherming
IP20 (binnen) IP65 (buiten)
Koelmethode
Geforceerde luchtkoeling
Communicatie-interface (optioneel)
RS485/USB/GPRS/WIFI/Ethernet
Afmeting van de regelaar (mm)
550*395*270
600*500*1200
600*500*1200
930*580*430 mm
1100*600*1800
Gewicht van de regelaar
25 kg
66 kg
68 kg
50 kg
406 kg
Afvalbelasting Grootte (mm)
690*520*270
690*530*520
710*890*590
710*890*590
Ingebouwde dumpload
Afvalbelasting Gewicht
45 kg
55 kg
55 kg
55 kg
Ingebouwde dumpload
Productgegevens
Systeemoplossing
Greef heeft een professioneel team om een systeem op maat te maken voor klanten, deze foto is een voorbeeld,als u andere Verplichtingen, neem contact met ons op!
