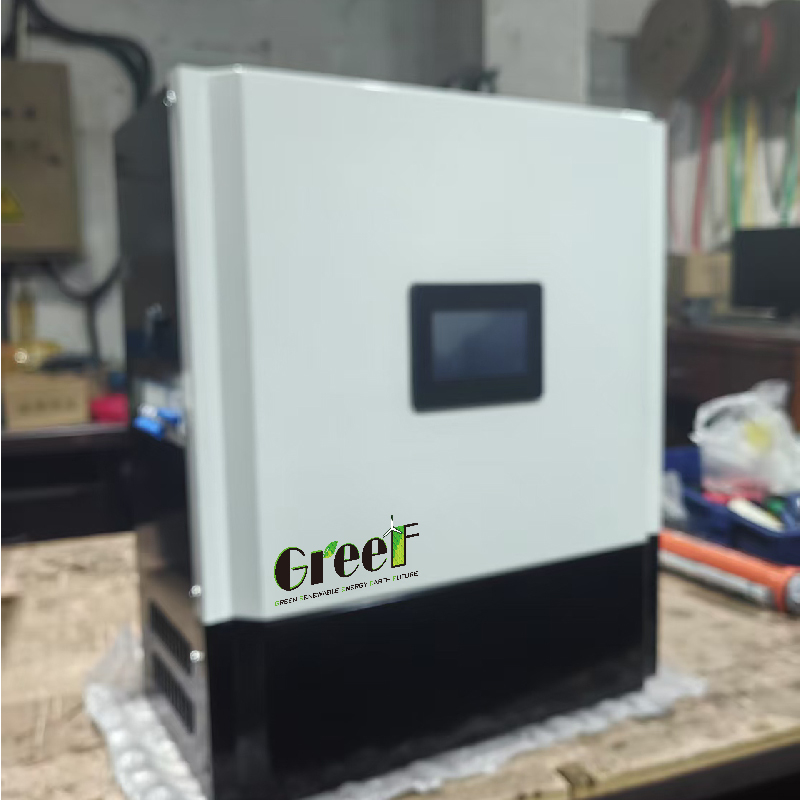

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

buiten het net 5 kW MPPT-controller

afstroomcontroller 30 kW 380Vac

MPPT-afgesloten netcontroller 48Vac

Merknaam:

Greef

Certificering:

CE

Model Number:

AHCC

Neem contact met ons op
Vraag een offerte
Productgegevens
Nominale spanning:
48VAC-380VAC
Nominaal systeemvoltage:
42-240VDC/200-1000VDC (Parameters instelbaar afhankelijk van het type energieopslag)
Nominale windenergie:
5 kW/10 kW/20 kW/30 kW
Inputbeveiliging:
Zekeringen; Bliksembeveiligingscircuits
MPPT -spanningsbereik:
90 ~ 520V Aangepast/220 ~ 530VAC
Hoogte boven zeeniveau:
3000 m Volledige belastinguitgang
Batterijtype:
Loodzure batterijen, lithiumbatterijen, DC-busbalken, enz.
Het maximum weerstaat Voltage:
290VAC-530VAC/600VAC gedurende 5 seconden
Markeren:

buiten het net 5 kW MPPT-controller

,

afstroomcontroller 30 kW 380Vac

,

MPPT-afgesloten netcontroller 48Vac

Betaling en verzendvoorwaarden
Minimum Order Quantity
1Set
Prijs
Bespreekbaar
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Betalingscondities
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
Productbeschrijving
Greef Off-Grid Controller voor windenergiesystemen
Maximale weerstandspanning: 290Vac-530Vac/600Vac Voor 5 seconden.
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 0
Productbeschrijving
De Off-Grid Controller is het meest cruciale onderdeel in windgeneratoren die verantwoordelijk zijn voor de omzetting van driefasige wisselstroom van de windturbine in gelijkstroom voor het opladen van batterijen.
De GREEF-off-grid-windcontroller verbetert de elektriciteitsproductie door middel van speciale MPPT-technologie, met:
  • Geavanceerd modulair ontwerp voor flexibele configuratie
  • Elektrische isolatie voor veiligheid
  • PWM-ontladingsmogelijkheid
  • Integratie van de beheercomputers
  • Grote touchscreen interface
  • IoT-functionaliteit voor afstandsbewaking
Toepassingen
De AHCC Off-Grid Controller is ontworpen voor verschillende hernieuwbare energiesystemen:
  • Windenergiesystemen
  • Hydro-energie-opwekkingssystemen
  • Zonne-energiesystemen
Het optimaliseert de prestaties en de efficiëntie door betrouwbare controle- en monitoringsmogelijkheden te bieden die zijn afgestemd op elke hernieuwbare energiebron.
Technische specificaties
Model AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
Nominaal vermogen 5 kW 10 kW 20 kW 30 kW
Productsoort MPPT, geïsoleerde nieuwe energieomvormer met hoge frequentie
DC-uitgangszijde
Soort energieopslag loodzuurbatterijen, lithiumbatterijen, gelijkstroombusstaven, enz.
Nominale uitgangsstroom 100A 200A 80A 150A
Uitgangsspanningsbereik 42-240Vdc (instelbaar) 200-1000Vdc (instelbaar)
Voltage-stabilisatie nauwkeurigheid ≤ ± 0,5%
Stabilisatie nauwkeurigheid ≤ ± 1%
Inlaatzijde van de windturbine
Nominale spanning 48Vac-380Vac 380Vac
Maximale weerstandspanning 290Vac-530Vac gedurende 5 seconden 600Vac gedurende 5 seconden
MPPT-spanningsbereik 90~520V op maat 220~530Vac
Maximaal vermogen 10 kW 20 kW 40 kW 60 kW
Nominale invoerstroom 40Aac 80Aac 40Aac 80Aac
Invoerbescherming andere elektrische apparaten, met een vermogen van niet meer dan 300 W
Afladingszijde
Ontladingsmethode PWM
Nominale ontladingstroom 40Adc 100Adc 50Adc 100Adc
Maximale weerstandstroom 60A 200A 200A 400A
Werkomstandigheden
Omgevingstemperatuur -25°C ∼50°C
Bergingstemperatuur -40°C ∼75°C
Relatieve luchtvochtigheid 0 tot 95%
Hoogte boven zeeniveau 3000 m vollading
Communicatie-interface Standard: RS485/TCP
Afmeting van de regelaar (mm) 485 × 267 × 450 mm 343 × 605 × 970 mm
Gewicht van de regelaar 29.5 kg 38.5 kg 61.5kg 71.5kg
Grootte van de afvallast (mm) 695 × 131 × 194 mm 700 × 450 × 750 mm 820 × 620 × 900 mm 900 x 700 x 1270 mm
Afvalbelasting Gewicht 18 kg 40 kg 80 kg 120 kg
Foto's van producten
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 1
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 2
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 3
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 4
Systeemoplossing
We kunnen een systeem aanpassen aan uw specifieke behoeften.Neem contact met ons op.om meer te weten te komen over onze producten.
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 5
Verpakking
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac 6
