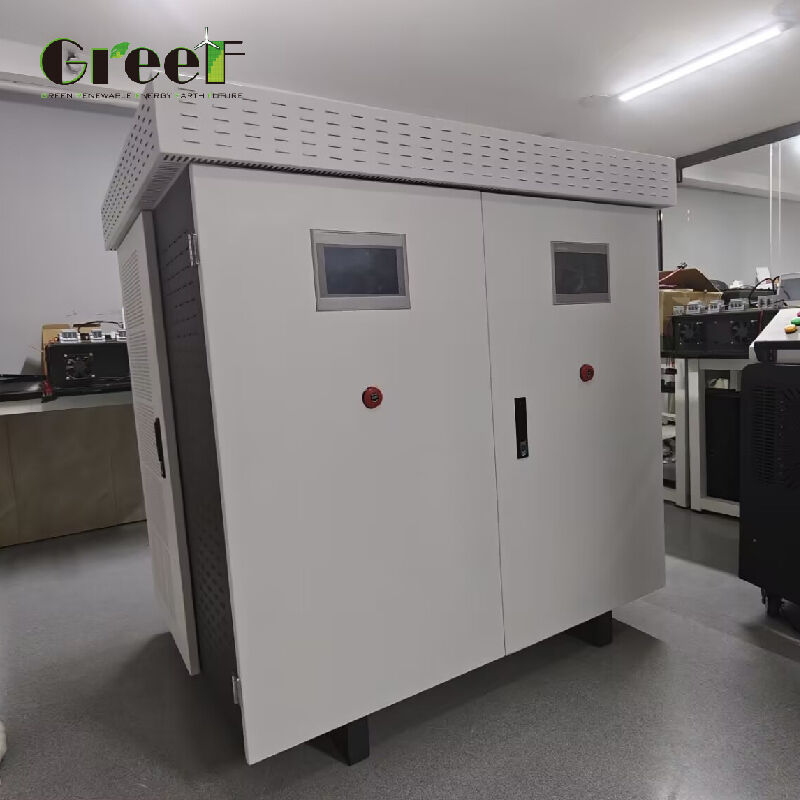

Name: On Grid Controller with 95% Maximum Efficiency 240-550V AC Voltage Range and LCD SMART Touch Screen for Energy Management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Thuis > producten > Op Netcontrolemechanisme >

On Grid Controller with 95% Maximum Efficiency 240-550V AC Voltage Range and LCD SMART Touch Screen for Energy Management

95% Maximum Efficiency On Grid Controller

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

LCD SMART Touch Screen Energy Management Controller

Merknaam:

Greef

Certificering:

Model Number:

AC PCS

Neem contact met ons op

Vraag een offerte

On Grid Controller with 95% Maximum Efficiency 240-550V AC Voltage Range and LCD SMART Touch Screen for Energy Management

Productgegevens

Beschermingsniveau:

IP54

Maximale efficiëntie (%):

95%

Geschatte laad- en ontlaadstroom (A):

144

Weergave:

Smart touchscreen met LCD

Stand-by stroomverbruik (W):

< 50

Communicatiemodus:

Ethemet, RS485, WIFI

AC-spanningswerkbereik (Vac):

240 ~ 550

Nominale netspanning (V):

400

Betaling en verzendvoorwaarden

Minimum Order Quantity

1Set

Prijs

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Betalingscondities

T/T,Western Union,MoneyGram,L/C

Supply Ability

VERWANTE PRODUCTEN

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Vind de beste prijs

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Vind de beste prijs

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Vind de beste prijs

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

AC Generator-Battery Hybrid Converter

The GREEF ENERGY multi-functional converter combines various essential functions into a single device. It performs AC-to-DC rectification specifically designed for Permanent Magnet (PM) generators, supports battery charging, enables DC-to-AC inversion, and includes an integrated energy management system.

Equipped with a configurable dual LCD touchscreen, this converter offers advanced control and monitoring capabilities. Its state-of-the-art converter technology ensures stable voltage and frequency regulation for Permanent Magnet Synchronous Generators (PMSGs), providing a reliable and uninterrupted power supply to connected loads.

Additionally, the device can be configured to operate in a grid-tied mode, allowing it to synchronize with the power grid for efficient operation and grid charging when needed.

Key Features

EMS Smart Energy Management System

The EMS smart energy management system offers multiple configurable operating modes including off-grid, grid-tied, and grid charging modes for flexible energy management.

Double LCD smart touch screen display for intuitive user interface
Generator power curve tracking for enhanced efficiency
AC/DC dual backup capabilities for continuous operation
Specialized control technology for unbalanced loads
RS485 Modbus RTU protocol for seamless communication
Optional PWM dump load protection against overvoltage and overspeed
Water gate motor control functions
Remote monitoring and control via WiFi or LAN
Customized sensor control functions
Static Transfer Switch (STS) support for grid-tied applications

Technical Specifications

General Electrical Specifications
Rated Power Output	100 kW
Minimum Rated Voltage	320 Vac
Optimal Generator Rated Voltage	450 Vac
AC Voltage Working Range	240 Vac to 550 Vac
Maximum AC Current	180 A

Battery Specifications
Battery Type	Lithium-ion
Voltage Range	350 Vdc to 450 Vdc
Rated Battery Voltage	400 Vdc
Max Charging/Discharging Current	250 A

Grid-Connected Output
Rated Power	100 kW (Max 120 kW)
Rated Current	144 A (Max 173 A)
Grid Voltage Range	300 V to 460 V
Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	< 3% at rated power
Power Factor	> 0.99 (Range: -1 to 1)
Overload Capacity	1.2x nominal power for 1 minute

Protection Features

Optional over-voltage and speed protection
AC short-circuit protection
AC output overcurrent protection
Surge protection at Level 2

Applications

The GREEF ENERGY multi-functional converter is designed to meet diverse power management needs where dependable and intelligent control is essential.

Renewable Energy Systems: Integration with PMSG wind turbines and hydro turbines for stable AC power delivery
Off-Grid and Backup Power: Central hub for power conversion in remote locations, cabins, and telecommunications stations
Grid-Interactive Systems: Grid charging and potential energy feedback to the grid
Industrial and Commercial Power Management: Stable power supply for unbalanced loads with remote monitoring
Specialized Control Systems: Water gate motor control and Static Transfer Switch integration

Customization Options

The Greef AC PCS On Grid Controller offers extensive customization capabilities including wind turbine speed and wind speed monitoring, power curve controller function, and PWM unloading with three-phase unloading system.

Manufactured in China with CE certification, this 100 kW rated power unit features comprehensive topology including AC-DC Rectifier, DC-DC Buck Boost, DC-AC Inverter, and EMS energy management.

Features include LCD SMART Touch Screen display, secure foam and plywood packaging, with minimum order quantity of 1 set and delivery time of approximately 25 working days.

Packaging & Shipping

Product Packaging

The On Grid Controller is securely packaged in a sturdy, custom-designed box with high-quality foam inserts to prevent movement or damage. Includes user manual, mounting hardware, and necessary cables.

Shipping Information

Orders are processed and shipped within 2-3 business days via reliable courier services with tracking. International shipping includes customs documentation handled by our team.
