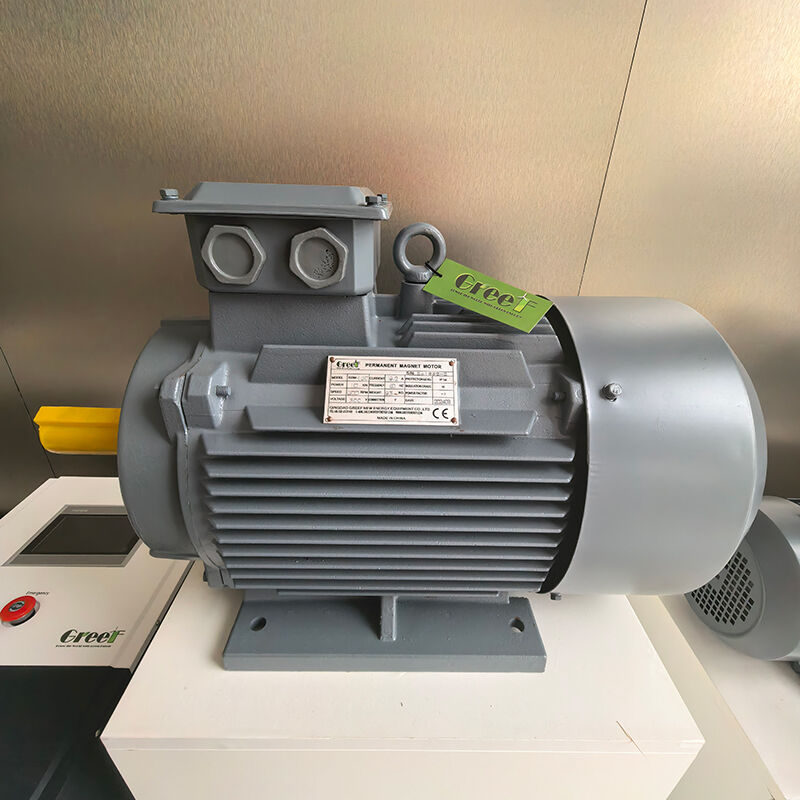

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

permanent magnet motor generator

high efficiency magnet motor

energy conversion magnet motor

Merknaam:

Greef

Certificering:

Model Number:

TYP

Neem contact met ons op

Vraag een offerte

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

Productgegevens

Productnaam:

Permanente Magneetmotor

Frequentie:

50/60 Hz

Materiaal van de generatorschaal:

gietijzer

Isolatiegraad:

Het isoleren Weerstand:

100Mohm Min ((500Vdc)

Motortype:

Permanente magneet

Producttype:

Motor

Aantal Polen:

Betaling en verzendvoorwaarden

Minimum Order Quantity

1Set

Prijs

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Betalingscondities

T/T,Western Union,MoneyGram,L/C

Supply Ability

VERWANTE PRODUCTEN

video

Low Noise Operation High Efficiency Permanent Magnet Motor with Constant Torque for Electric Vehicles and Industrial Automation

Vind de beste prijs

video

6 Poles Permanent Magnet Motor with 0-8000 RPM Speed Range and IP54 Classification for Industrial Applications

Vind de beste prijs

video

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

Vind de beste prijs

video

IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Permanent Magnet Motor Type Magnet Motor Generator

High-efficiency motor generator designed for energy conversion with efficiency exceeding 95%

Product Overview

TYP Magnet motors feature rotors equipped with permanent magnets, delivering enhanced performance through higher efficiency and greater power density relative to frame size. These compact yet powerful motors are controlled using frequency inverters to ensure consistent torque output across a broad speed range. They maintain high efficiency even at lower speeds without requiring forced ventilation, operating quietly while providing significant energy savings for environmentally friendly applications.

Key Features

High Efficiency and Energy Saving: Saves up to 30% energy compared to induction motors, with efficiency maintained across 20% to 110% load range. Achieves power factor close to 1.0, reducing stator current and copper losses.
Constant Torque Across Wide Speed Range: Delivers consistent torque without forced ventilation or encoder requirements.
Long Bearing Life and Low Maintenance: L10 bearing life rating of 100,000 hours (over 10 years continuous operation) with grease nipples for easy re-lubrication.
High-Performance Permanent Magnets: Utilizes NdFeB rare-earth magnets with 18x greater magnetic strength than ferrite magnets, featuring epoxy coating for mechanical strength and corrosion resistance.
Integrated Thermal Protection: Embedded PTC thermistors protect against overheating from phase loss, overloads, or voltage fluctuations.
Synchronous Operation and Stable Speed: Rotor speed synchronized with stator magnetic field eliminates slip and rotor power loss.
Low Operating Current: Maximum torque/current ratio control reduces stator current by 15-30%, decreasing cable transmission losses.
Lower Temperature Rise: 15-20°C lower temperature rise than comparable asynchronous motors, extending equipment life.
Significant Cost Savings: Replacing 37kW IE2 induction motor can save approximately 9,000 RMB annually with 24/7 operation.

Applications

TYP series high-efficiency permanent magnet frequency conversion synchronous motors are versatile solutions for various industries including injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing machines, extruders, wire drawing machines, and pharmaceutical equipment. Requires dedicated permanent magnet motor inverter for optimal performance.

Customization Options

Greef offers customizable TYP model Permanent Magnet Motors from China. These 3-phase AC Synchronous Motors feature 6 poles, 50/60Hz frequency, IP54 protection, and H-grade insulation. Flexible customization for low-speed applications with minimum order of 1 set. All products are CE certified with negotiable pricing.

Packaging & Delivery

Permanent Magnet Motors are securely packaged with protective materials in sturdy cartons, with bulk orders in reinforced crates or pallets. Shipping options include air freight, sea freight, and express courier services with tracking and insurance. Each motor undergoes thorough inspection and testing before shipment. Delivery time: 25 working days. Payment methods: T/T, Western Union, MoneyGram, L/C.
